Distribution Terminal Block 125A - UKK125
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun

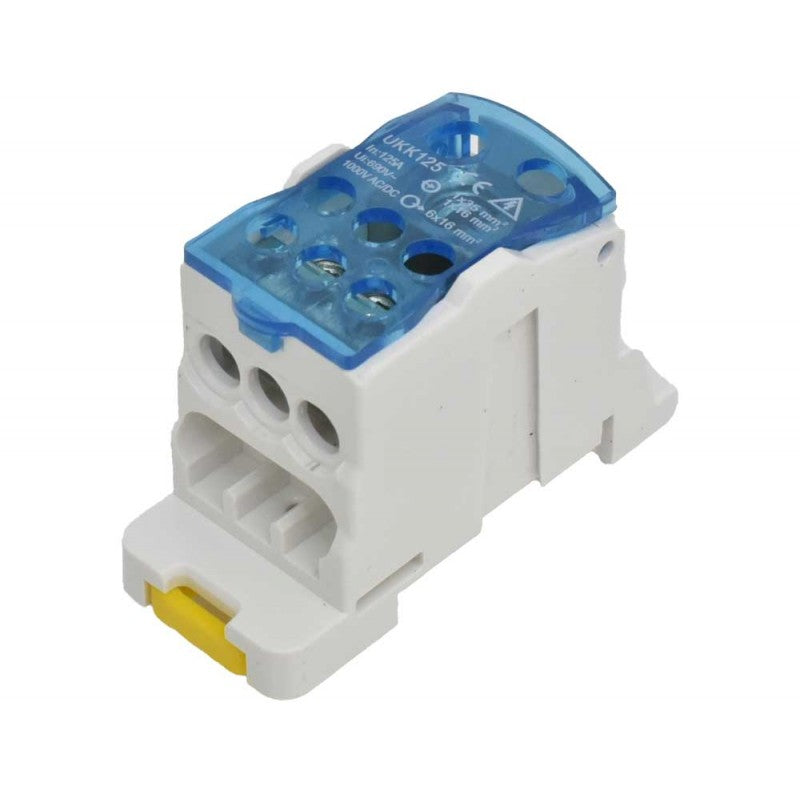

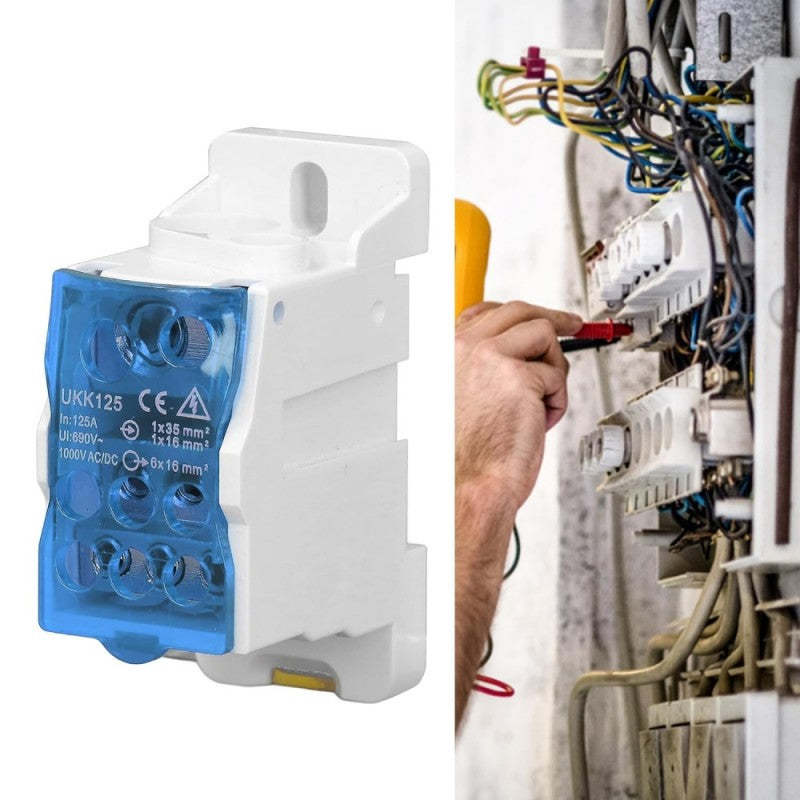

125A Distribution Terminal Block for Safe Branching of Electrical Circuits
The UKK125 terminal block allows branching a main electrical current line into six secondary circuits, without the need for complex interventions. This professional accessory is essential in electrical panels for organized current distribution, offering secure connections and eliminating the risk of electrical leakage through its robust construction.
What you get with this product
- Safe distribution of 125A current from the main cable to six secondary circuits, without needing an electrician for complex modifications
- Flame-retardant ABS plastic housing that does not sustain flame and resists high temperatures, protecting the installation in critical situations
- Simple DIN rail mounting in the electrical panel, without the need for special tools or complicated calibrations
- Solid copper contacts that ensure maximum conductivity and eliminate energy losses or overheating

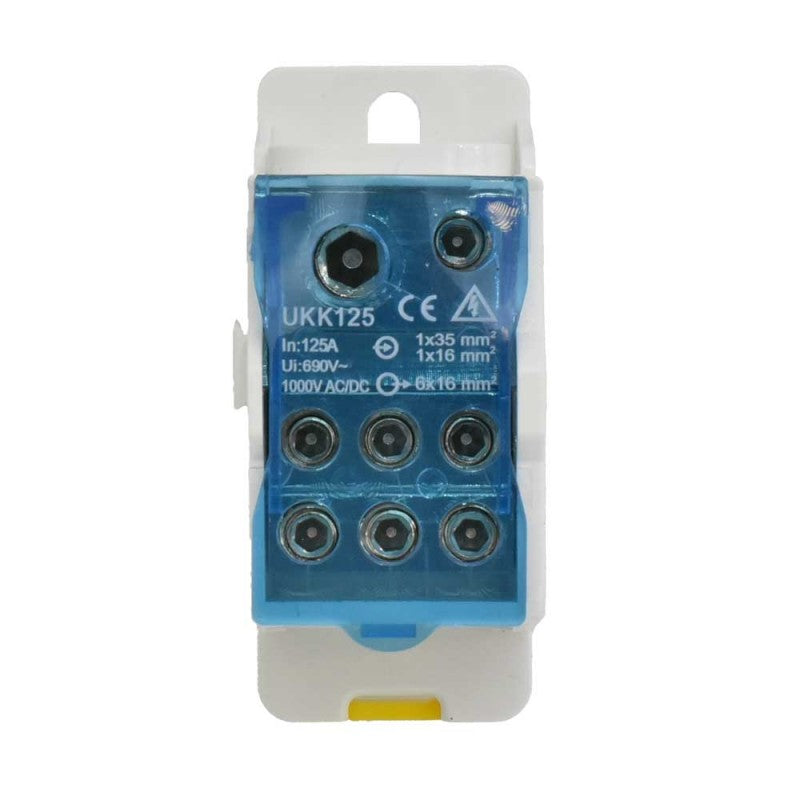

- Transparent top cover design that allows quick inspection of connections without disassembling
- Clear organization of electrical circuits in the distribution board, reducing the time needed for troubleshooting or future expansions
How it works and how to install it

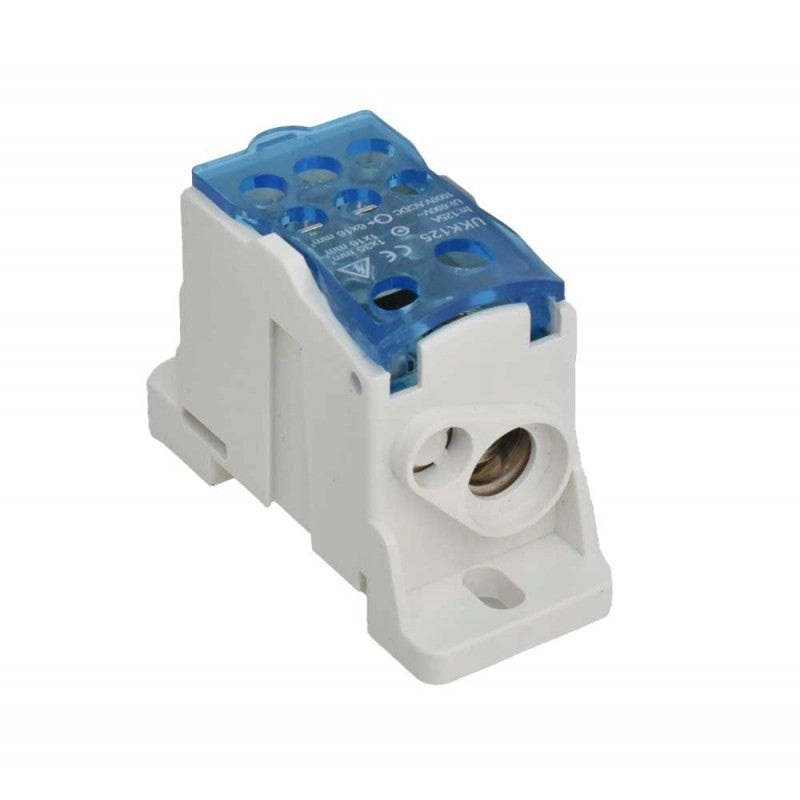

The terminal block is mounted on the standard DIN rail in the electrical panel by fixing it to the yellow rear clip. The main input accepts cables up to 35mm² or 16mm², and the outputs allow connecting six 16mm² cables. Connections are made by tightening the upper screws with a screwdriver, without the need for special tools.

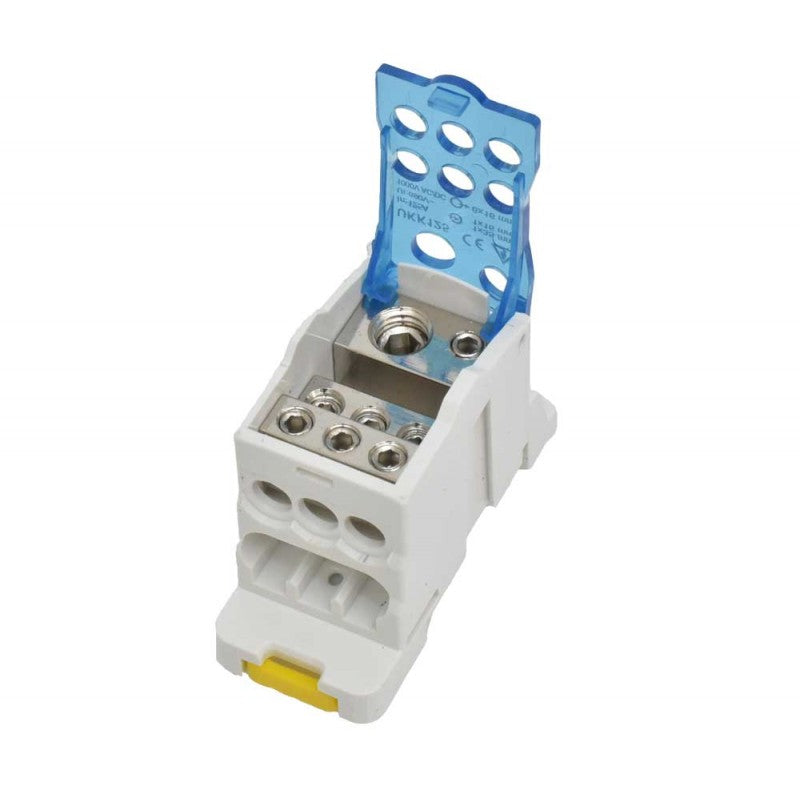

The transparent cover folds open for quick access to the connection terminals. The flame-retardant material of the housing ensures safe operation even under maximum load conditions or high temperatures inside the panel.
Frequently Asked Questions
Can it be used for three-phase current or only single-phase?
The UKK125 terminal block is compatible with both single-phase and three-phase installations. One terminal block is used for each phase in three-phase installations.
How difficult is it to install the terminal block yourself in the electrical panel?
Installation is simple if you have basic electrical knowledge. It is fixed to the DIN rail via the rear clip and the cables are connected by tightening the screws. For safety, always turn off the power before installation.
What happens if I exceed the maximum current of 125A?
Exceeding the rated current can cause overheating of the contacts and damage to the terminal block. Make sure that the sum of the consumption of the connected circuits does not exceed 125A. It is recommended to use appropriate fuses or circuit breakers on the main line.
Technical Specifications
| Model | UKK125 |
| Rated current | 125A |
| Maximum voltage | 690V AC / 1000V DC |
| Cable input | 1 x 35mm² + 1 x 16mm² |
| Cable output | 6 x 16mm² |
| Contact material | Copper |
| Housing material | Flame-retardant ABS plastic |
| Mounting | Standard DIN rail |
| Dimensions | 70 x 45 x 29 mm |
| Certification | CE |
Warranty and Support
The UKK125 terminal block benefits from a 2-year warranty in accordance with Romanian legislation, covering manufacturing defects. You have the right to return within 30 days of purchase if the product does not meet expectations. Delivery is carried out quickly by national courier throughout Romania.
