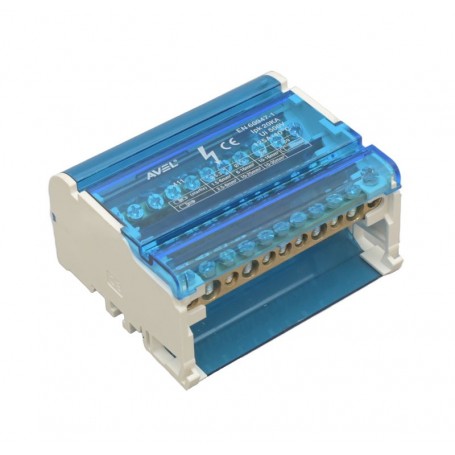

Electrical Distribution Block 411 - 125A / 500V 1.5-25mm / 2.5-35mm
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
411 Electrical Distribution Block for Distribution Boards
The 411 electrical distribution block is a compact and safe solution for current distribution in residential, commercial, and industrial electrical panels. With a rated current of 125A and an insulation voltage of 500V, it allows simultaneous connection of multiple circuits from a single power point. The transparent protective plastic casing provides quick visual access to connections and reduces the risk of accidental contact.
What you get with this product
- Distributes current to multiple circuits simultaneously, without improvised connections or overload risks
- Accepts cables with cross-sections between 1.5 and 35mm, compatible with most existing electrical installations
- Direct DIN rail mounting — fixes into the electrical panel in minutes, without special tools

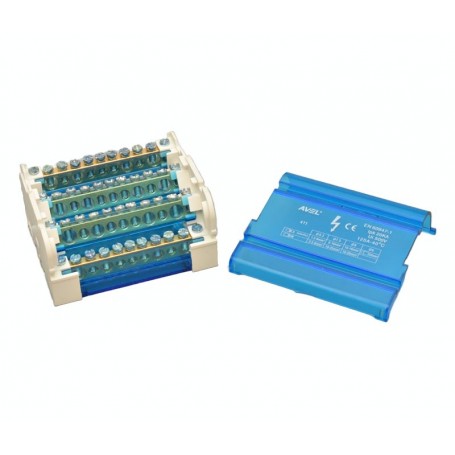

- Transparent casing with mechanical protection allows visual inspection of connections without disassembly
- Supports 125A rated current and 500V voltage, suitable for large electrical loads in robust installations
- EN 60947-1 certified, with a short-circuit breaking capacity of 20kA — compliance with European safety standards
How it works and how to install it
The 411 distribution block mounts on a standard DIN rail in the electrical panel by simply sliding and mechanically locking it — no drilling or special tools are required. The main power cable connects to the input terminals, and secondary circuits are individually connected to the output terminals using an electrician's screwdriver. The transparent cover attaches and detaches easily, allowing quick interventions without disassembling the entire unit.
Frequently Asked Questions
How many circuits can I distribute current to with this block?
The 411 block has multiple rows of terminals that allow simultaneous connection of numerous secondary circuits, depending on the cross-section of the cables used.
Can it be mounted both vertically and horizontally in the panel?
Yes, the block fixes onto a standard 35mm DIN rail and can be positioned according to the configuration of the electrical panel.
Is it compatible with aluminum cables?
The block is primarily designed for copper cables with cross-sections between 1.5-25mm and 2.5-35mm; for aluminum cables, compatibility verification with an authorized electrician is recommended.
Technical Specifications
| Model | 411 |
| Rated current | 125A |
| Insulation voltage (Ui) | 500V |
| Short-circuit breaking capacity (Ipk) | 20kA |
| Input cable cross-section | 2.5 - 35mm² |
| Output cable cross-section | 1.5 - 25mm² |
| Operating temperature | -40°C / +40°C |
| Standard | EN 60947-1 |
| Mounting type | DIN rail |
| Brand | AVEL |
| SKU | Q-14J087 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days from the date of receipt, with no justification required. Delivery is carried out quickly by courier, with shipping confirmation and tracking capability.
