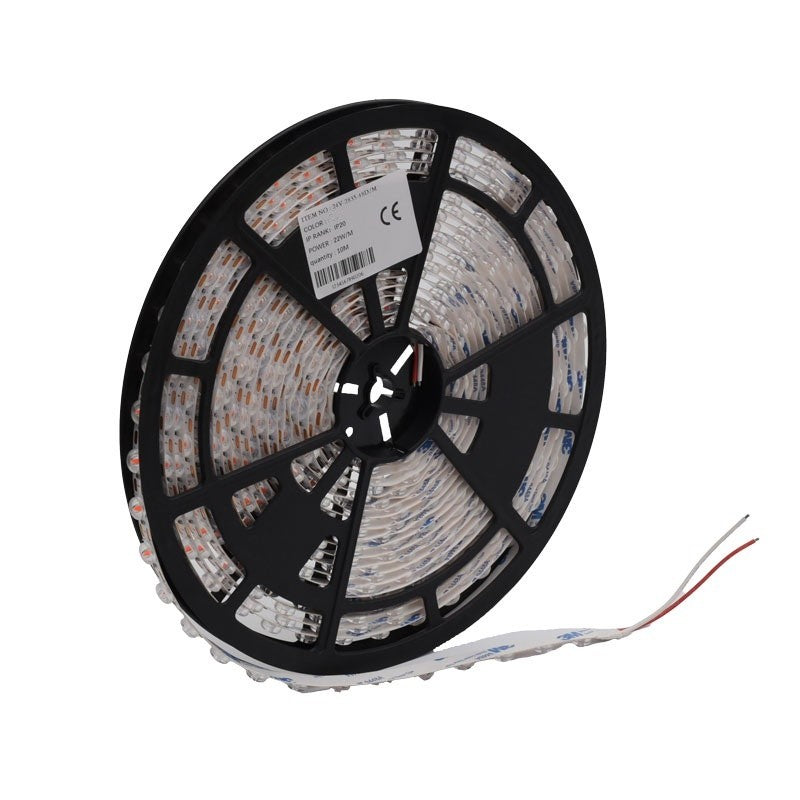

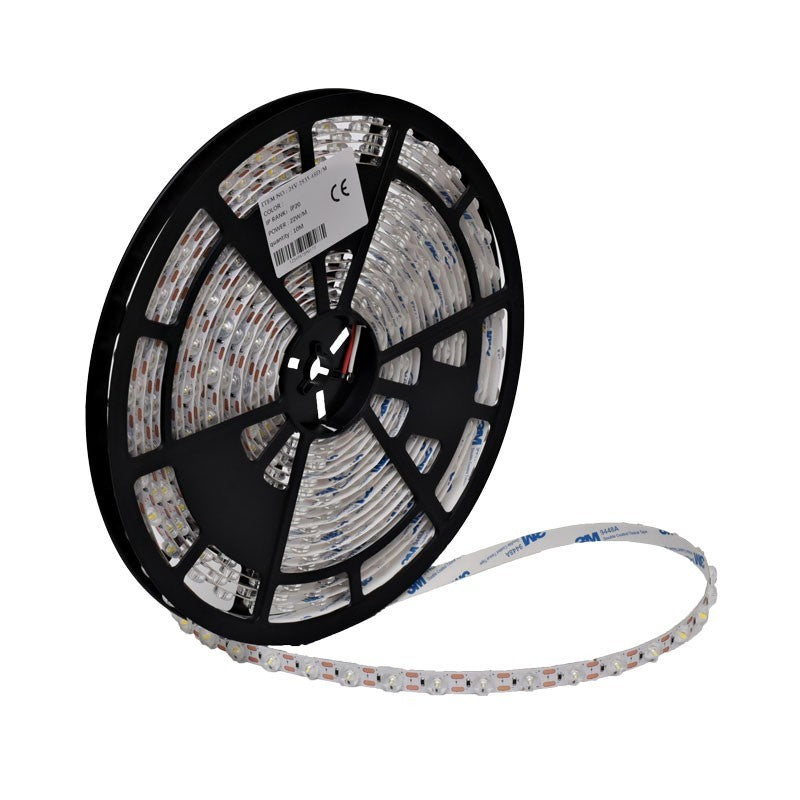

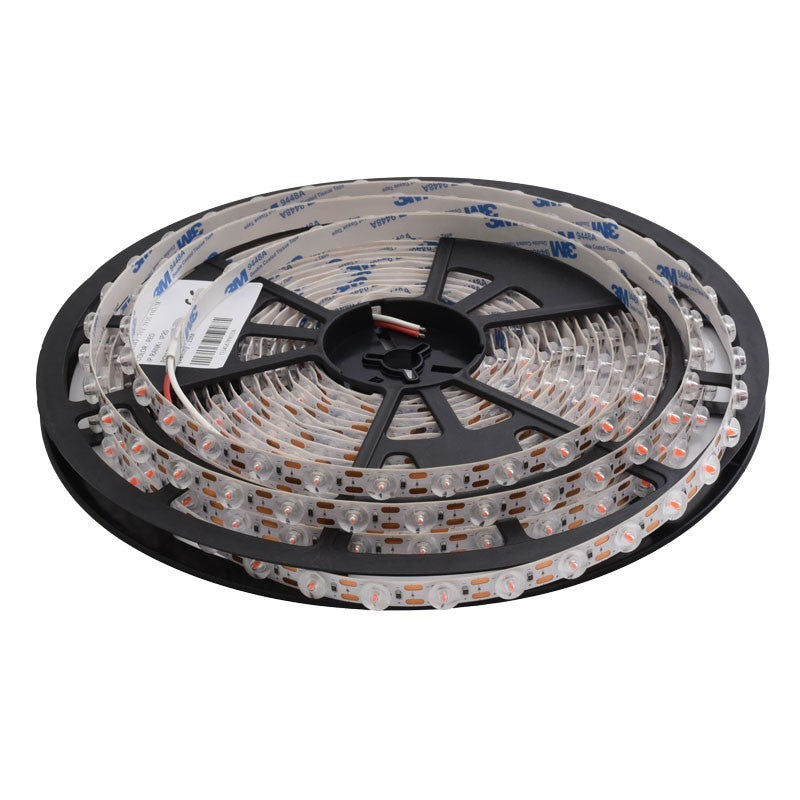

LED Strip 2835 with Lens - 24V - 480LED - 220W, IP20 Warm White Light 3500K, Roll/10m
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
2835 LED Strip with Lens 24V for Intense Uniform Lighting
The 2835 LED strip with lens is the right solution for applications requiring a high and uniform luminous flux over large surfaces — display cases, illuminated panels, advertising lightboxes, or interior architectural lighting. With 480 diodes per 10-meter roll and individual focusing lenses, this strip provides clear, cool white light at 6000K-6500K with no visible spots. The 24V DC voltage ensures electrical stability along the entire length of the strip, without perceptible voltage drops.
What you get with this product

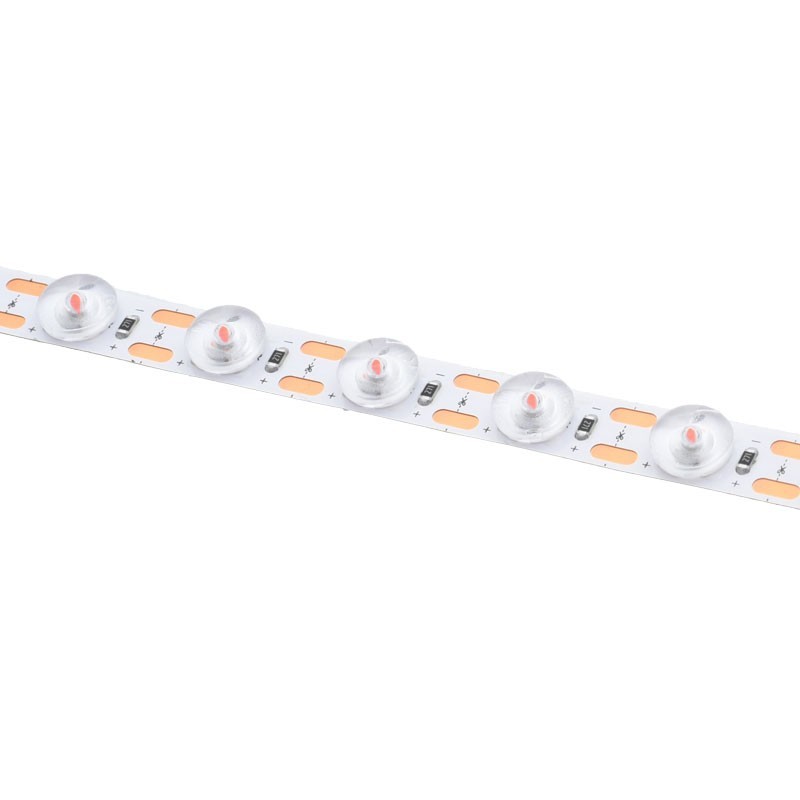

- Uniform light without visible spots — the magnifying lenses mounted on each 2835 LED distribute the luminous flux homogeneously, eliminating the granulation effect
- True power of 22W per meter — 220W for the entire 10-meter roll, sufficient for intense functional lighting, not just decorative
- High density of 48 LEDs per meter — 480 diodes per roll ensure complete visual continuity, without darker areas
- 24V DC voltage for safety and efficiency — minimal voltage drop over long lengths, compared to 12V variants
- 3M self-adhesive tape on the back — quick mounting on any flat, clean surface, without additional supports
- Compact 10-meter roll ready to use — you can cut the strip to the desired length at the marked cutting points
How it works and how to install it
The 2835 LED strip with lens operates at 24V DC, so it requires a transformer (power supply) corresponding to the total power used — for the entire 10-meter roll, a power supply of at least 220W at 24V is needed. Installation is straightforward: peel off the protection of the 3M adhesive from the back and apply the strip to a clean and dry surface, then connect the wires to the power supply, observing the polarity. The strip can be shortened to any length by cutting at the markings indicated on the PCB, without affecting the rest of the strip.
Frequently Asked Questions
What power supply do I need for this strip?
You need a 24V DC power supply with a minimum power of 220W for the complete 10-meter roll. If you only use a portion, calculate 22W for each meter used and add a small safety surplus.
Can this strip be used in the bathroom or outdoors?
No. IP20 protection means that the strip is not protected against humidity or water, so it is recommended exclusively for installation in dry indoor spaces.
At what distance can cuts be made on the strip?
The strip can be cut at each group marked on the PCB, generally every 3 LEDs or according to the cutting marks visible on the substrate. Cuts at other points can damage the circuit.

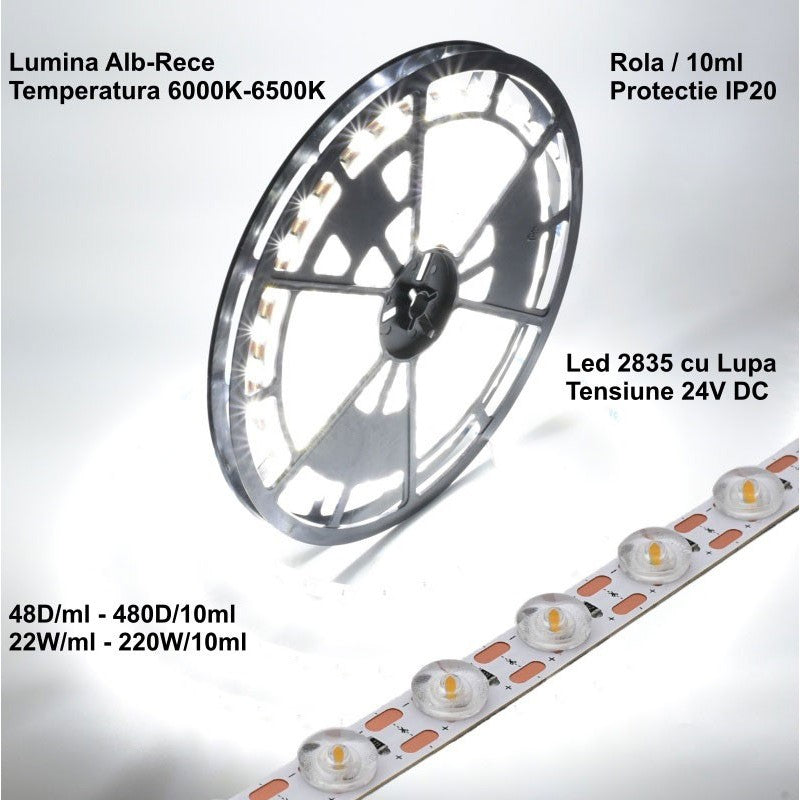

Technical specifications
| SKU | Q-18A164 |
| LED type | 2835 with lens (focusing lens) |
| Color temperature | 6000K - 6500K (Cool White) |
| Supply voltage | 24V DC |
| Power per meter | 22W/m |
| Total roll power | 220W / 10m |
| Number of LEDs per meter | 48 LED/m |
| Total number of LEDs per roll | 480 LED / 10m |
| Roll length | 10 meters |
| Protection rating | IP20 (indoor, dry spaces) |
| Adhesive | 3M on back |
| Brand | ClassLights |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, without requiring justification, provided that the product is unused and in its original packaging. Delivery is fast by courier, with parcel tracking, throughout Romania.
