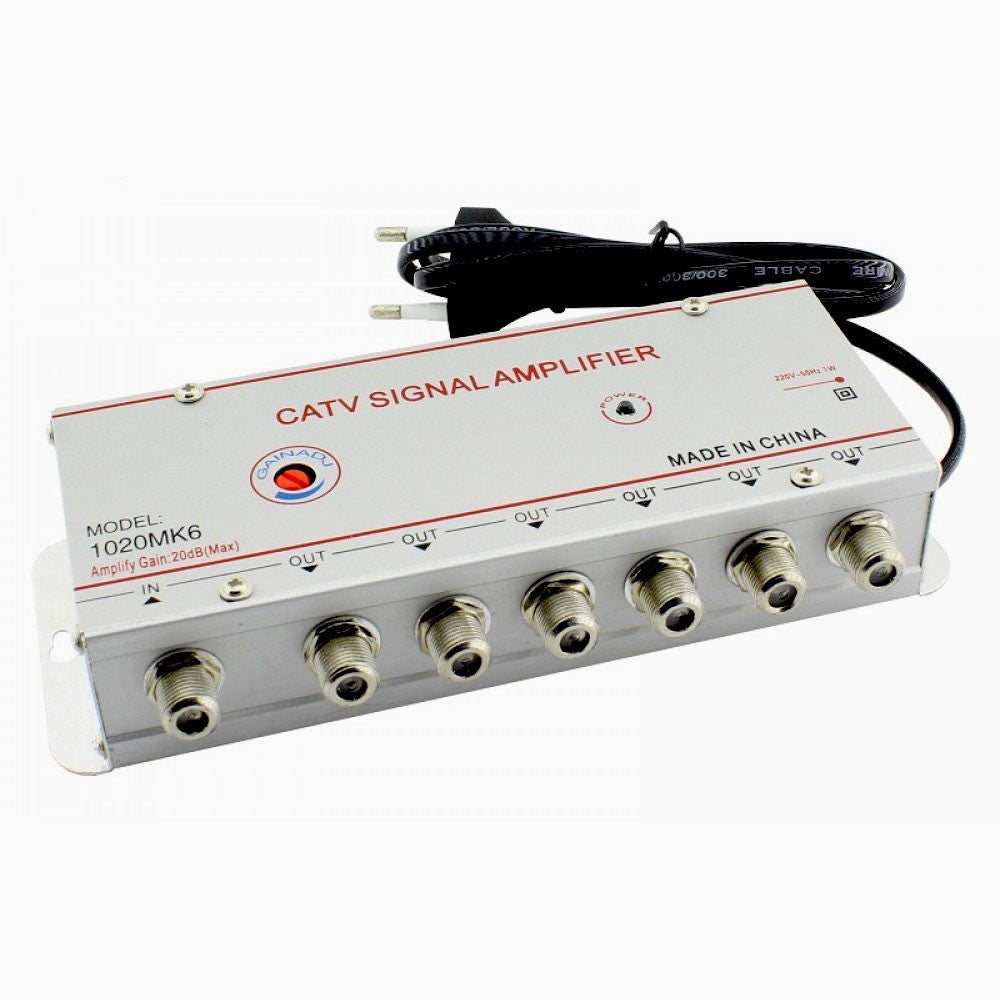

Cable TV amplifier, 6-output splitter
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
6-Output Cable TV Amplifier for Stable Signal
The 6-output cable TV amplifier with splitter distributes the CATV signal to up to six televisions simultaneously, without loss of quality. It is the suitable solution for homes, apartments, or offices where a single main cable needs to be split into multiple rooms. With active amplification of up to 20 dB and manual adjustment, the signal reaches every connected TV clearly.
What you get with this product
- Connect up to 6 televisions to a single TV cable, without paying for additional installations from the operator
- The image remains clear on all televisions simultaneously, thanks to active amplification of up to 20 dB
- Adjust the signal intensity with a screwdriver directly on the device, without external equipment
- Also functions as a passive splitter when not plugged into an outlet, offering usage flexibility
- Aluminum casing ensures durability and good thermal dissipation during continuous use
- Compatible with major Romanian networks: Digi, Orange TV, Vodafone TV, RCS & RDS
How it works and how to install

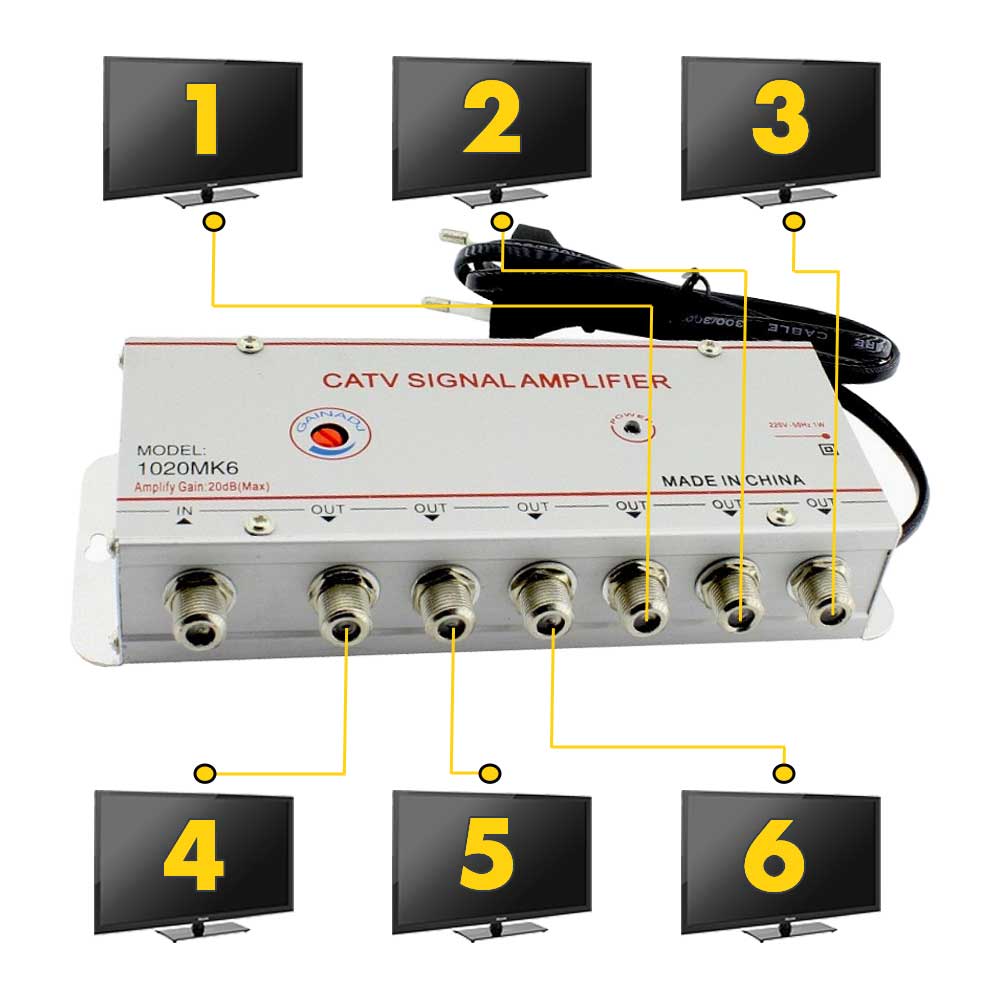

The amplifier is ideally mounted immediately at the TV cable's entry point into the property. The main cable is connected to the input jack marked IN, and the cables to each television are connected to the six OUT output jacks. After plugging it into a 220V outlet, the signal is automatically amplified and can be finely adjusted with a screwdriver via the adjustable rotator on the front of the device. Installation does not require advanced technical knowledge and can be done in a few minutes.
Frequently asked questions
Does it work even if I don't plug it in?
Yes, without power, the device functions as a passive splitter, but without signal amplification. For optimal results on all 6 outputs, plugging it in is necessary.
Is it compatible with satellite television?
The amplifier is compatible with both cable TV and satellite signals, using standard F-type connectors.
What happens if I don't use all 6 outputs?
You can use only the outputs you need; the others remain unconnected. It is recommended to install 75-ohm terminators on unused outputs to avoid signal reflections, although the device also works without them.
Technical specifications
| Model | 1020MK6 |
| Number of outputs | 6 x OUT |
| Number of inputs | 1 x IN |
| Maximum amplification | 20 dB |
| Power supply | 220V - 50Hz, 1W |
| Connector type | F (coaxial) |
| Signal adjustment | Manual, via rotary potentiometer |
| Casing | Aluminum |
| Dimensions | 13.7 x 7 x 3 cm |
| Compatibility | CATV, Satellite, Digi, Orange TV, Vodafone TV, RCS/RDS |
| Package contents | 1 x amplifier, 1 x power cable |
Warranty and support
The product benefits from a 2-year legal warranty according to current Romanian legislation. Returns are accepted within 30 days from the delivery date, without the obligation to provide a reason. Delivery is fast by courier, with shipping confirmation by email or SMS.
