Panel Ammeter, Digital, LED, 220V, Diameter 22mm
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

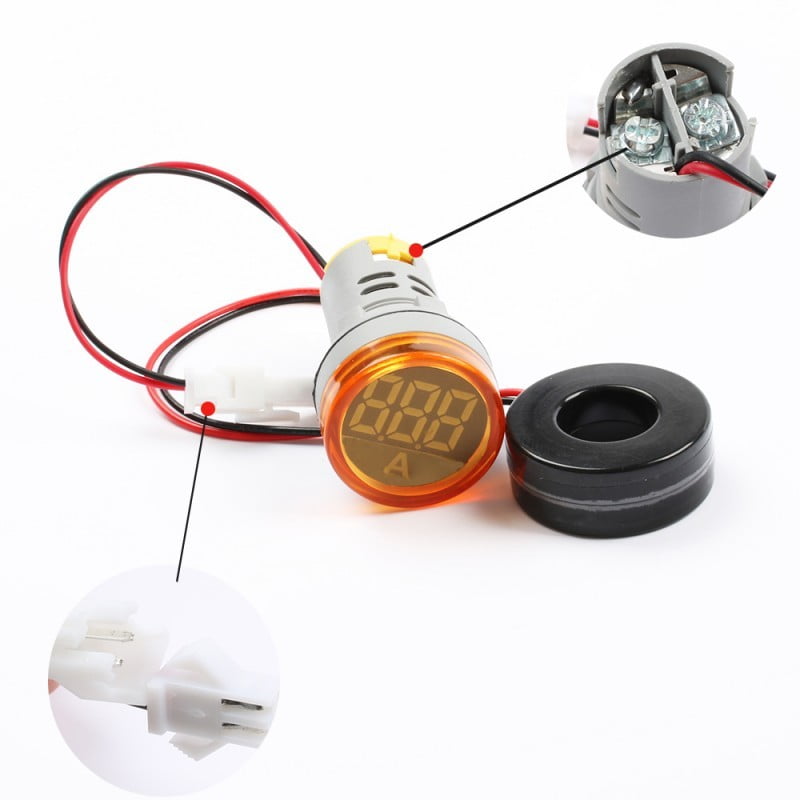

220V Digital Panel Ammeter for Precise Current Monitoring
This digital ammeter with an orange LED display allows you to monitor the electrical current consumption in your industrial or domestic installations in real time. With simple 22mm panel mounting and 220V operation, you gain complete control over the electrical consumption in panels, machines, or equipment. Ideal for electricians, workshops, and industrial applications where current monitoring is essential.
What you get with this product
- Instant current reading between 0-100A on a visible LED display from any angle
- Quick mounting in standard 22mm holes in any electrical panel or distribution board
- Continuous operation over 30,000 hours without degradation, resistant to industrial vibrations
- Accurate reading even in difficult environments with temperatures between -25°C and +55°C
- Luminescent orange display that remains visible even in low light conditions
- Electrical protection with 2.5kV isolation voltage for maximum operational safety
How it works and how to install it

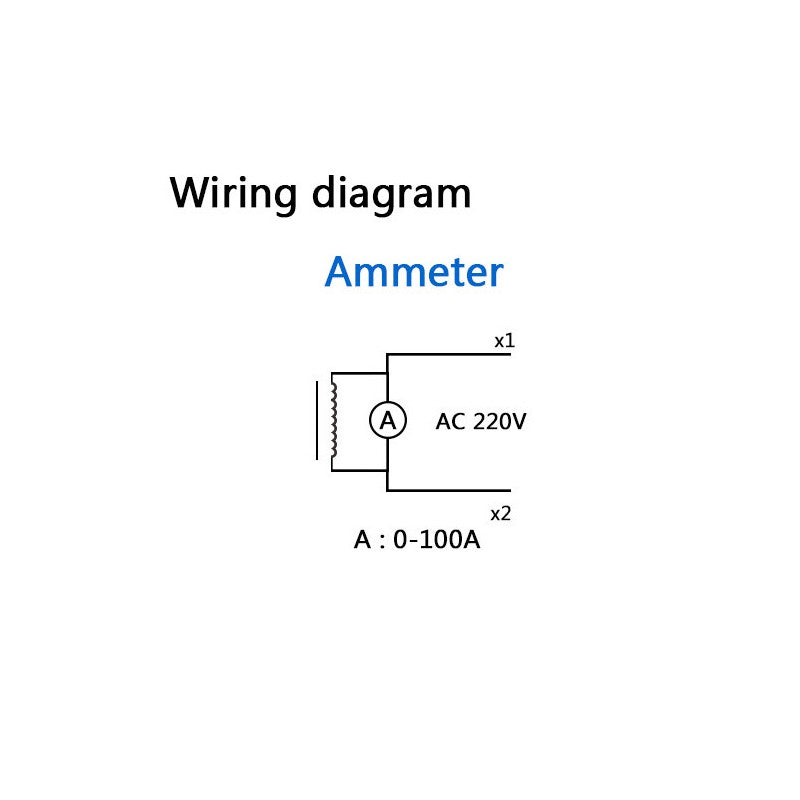

The ammeter is mounted through a circular 22mm hole in the electrical panel, secured with the included nut and gasket. It connects to the 220V network according to the provided electrical diagram - one wire to the source and one to the consumer, with the included current transformer capturing the actual consumption. The LED display automatically shows the current amperage, without additional settings. Installation requires basic electrical knowledge and adherence to safety standards for working with electrical panels.
Frequently asked questions
Can I use the ammeter for three-phase current or only single-phase?
This model measures current on a single phase. For three-phase installations, you need three separate ammeters, one for each phase.
Does the display stay on permanently or does it need separate power?
The LED display operates continuously as long as it is powered at 220V and consumes negligible energy, being designed for permanent monitoring.
What is the accuracy of the electrical current measurement?
The digital ammeter offers adequate precision for standard industrial monitoring, with clear display on the LED and quick value updates.
Technical specifications
| Supply voltage | 220V AC, 50-60Hz |
| Measurement range | 0-100A |
| Display type | Digital LED, orange color |
| Mounting diameter | 22mm |
| Operating temperature | -25°C to +55°C |
| Lifespan | Over 30,000 hours of continuous operation |
| Vibration resistance | 2-80Hz, 0.7g acceleration |
| Relative humidity | Up to 98% |
| Isolation voltage | 2.5kV AC, 1 minute |
| Rated temperature | T90 |
| Package contents | 1x Digital ammeter with transformer and mounting accessories |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation for manufacturing defects. You have the right to return the product within 30 days of receipt if it does not meet expectations. Delivery is fast via national courier with check upon receipt.
